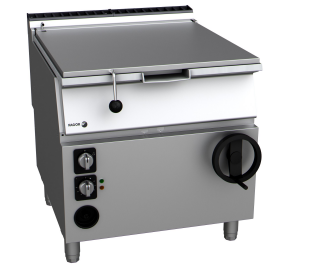

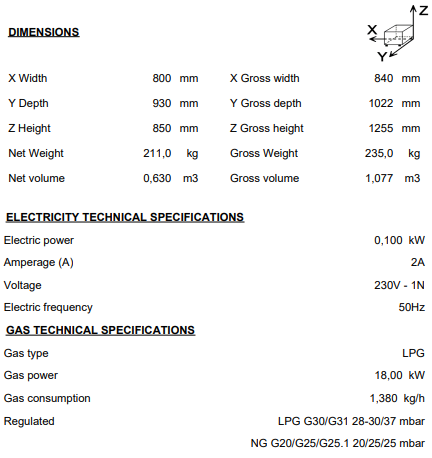

Origin -Spain: Gas Tilting Bratt pan, LPG 50Hz, manual with stainless steel tank of 90 L, 900 range.

"- Laser-cut joints, automatic welding and polishes. Screws hidden from view. - Pan design with a rounded corners and no edges, and with a wide opening for unloading, making all cooking and cleaning operations easier. - Flange around the perimeter to stop any condensed water from spilling over. - The bottom of the wells is very thick (8 mm for iron pans and 10 mm for stainless steel pans), guaranteeing even heat distribution. - Pans filled with water by means of electricvalve operated with switch on the front of the machine. The filling pipe is located at the back of the machine. - Double walled lid with drainer at the back to redirect water of condensation back into the well. - Lid balance system by springs. Compensation system to avoid heavy falls. Can be regulated, with the same system for all modules. - Micro breaking switch halts heating when the pan is raised. - High temperature enamelled cast iron flue protector. - Access to the components from the front. - Machines with IPX5 grade water protection. - Front access lid handle. - Temperature of the bottom of the pan controlled by thermostat, between 50 and 310 °C." - Stainless steel pan. " - Gas heated models use steel burners with six branches (eight in the pan with one and a half modules), operated and controlled by safety valve with thermocouple. - The heating by branched burners or electrical heating elements located in the base of the pan itself, together with the high thickness of the bottom of the pan, ensure maximum uniformity of temperature distribution in all cases, guaranteeing even cooking. "
- Crank operated elevation system which is able to raise the pan until it is vertical, to empty it completely. POSSIBLE OPTIONS : - 230 1N- Transformation A 230 V single phase - 230 III - A 230 V three-phase transformation without neutral - Marine Transformation for boat - Tiltting and boiling pans POSSIBLE ACCESSORIES : - STANDS 900 - REFRIGERATED STANDS - ACCESSORIES KORE - KORE WHEELS - TALL CHIMNEY KORE
